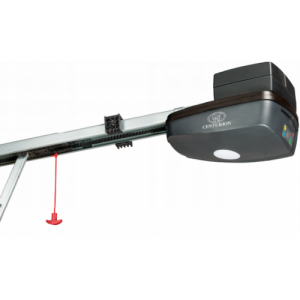

Centurion Garage Motor sdo4


Centurion Garage Motor sdo4
CENTURION’s most innovative garage door motor yet, boasting whisper-quiet operation thanks to its state-of-the-art mechanical design, extended battery life for uninterrupted convenience during power outages, and our pioneering – and award-winning– SMART technology for quick and easy setup.
SMART simplicity meets SMART sophistication:
• Connecting you to convenience
• Redefining the installation experience
• Making your life easier through SMART technology

SKU: centurion-garage-motor-sdo4 Category:

Centurion Garage Motor sdo4

Main features:

  • Connecting you to convenience with smartphone integration
  • Redefining the installation experience with the easiest and most intuitive electronic and mechanical commissioning of any garage motor in the SDO4’s class
  • Always-on reliability
  • Advanced safety and obstruction-detection technology for more peace of mind
  • Adjustable speed on tip-up doors
  • Compatible with Photon SMART wireless beams – easier and more cost-effective than ever before to fit safety beams
  • The ultimate in flexibility with programmable IOs
  • App-based management of remote controls
  • Industry-leading security features including tamper detection and intelligent door status monitoring

Technical Specifications:

Input voltage230V AC +/-10% @ 50/60Hz230V AC +/-10% @ 50/60Hz
Motor voltage24V DC24V DC
Motor power supply – rated80W DC100W DC
Motor supplyBattery supply 2 x 3.4Ah 12V DCBattery supply 2 x 3.4Ah 12V DC
Maximum door width6.5 metres6.5 metres
Maximum door area12 Square meters15 Square meters
Maximum push/pull force40kgf50kgf
Maximum lifting capacity1000N1200N
Operations in standby modeUp to 90 dependent on door size, weight, height and duration of power failure / condition of batteriesUp to 90 dependent on door size, weight, height and duration of power failure / condition of batteries
Maximum operator travel speed39m/min9m/min
Door travel adjustmentPhysical end-stops (Automatic limit set)Physical end-stops (Automatic limit set)
Safety obstruction force systemBuilt-in menuBuilt-in menu
Autoclose2Menu SelectableMenu Selectable
Infrared safety beamsMenu Selectable (Optional but recommended)Menu Selectable (Optional but recommended)
Onboard receiver typeCode-hopping single channelCode-hopping single channel
Receiver code storage capacity20x 4-Button Transmitters20x 4-Button Transmitters
Receiver frequency433.92Mhz433.92Mhz
Degree of protectionIPX0 (For interior use only)IPX0 (For interior use only)

1. Can operate off a solar supply, consult Centurion Systems for assistance
2. Can increase battery capacity for longer standby times
3. Speed varies with load
